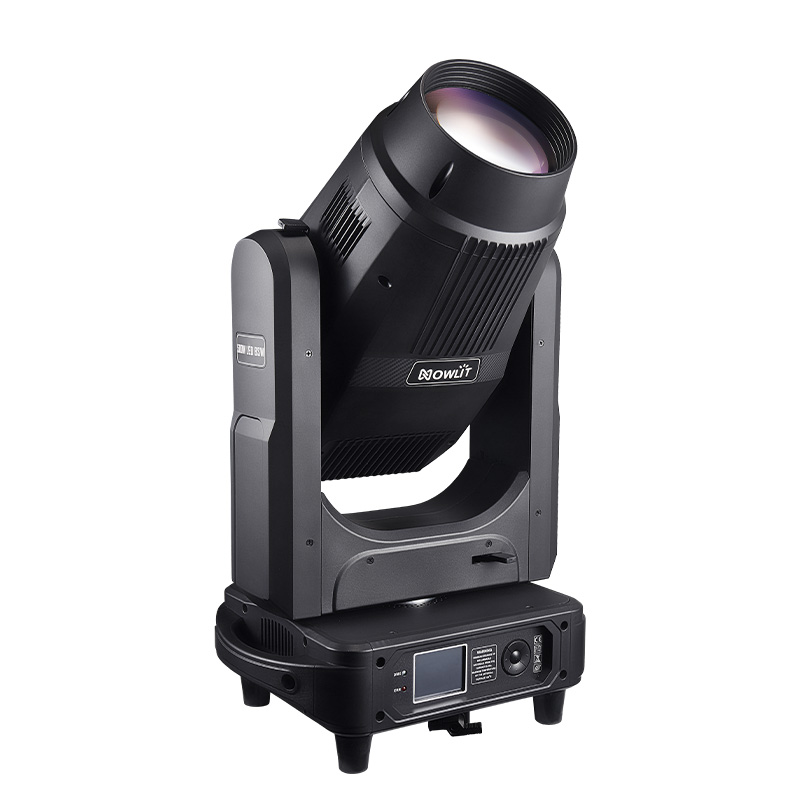

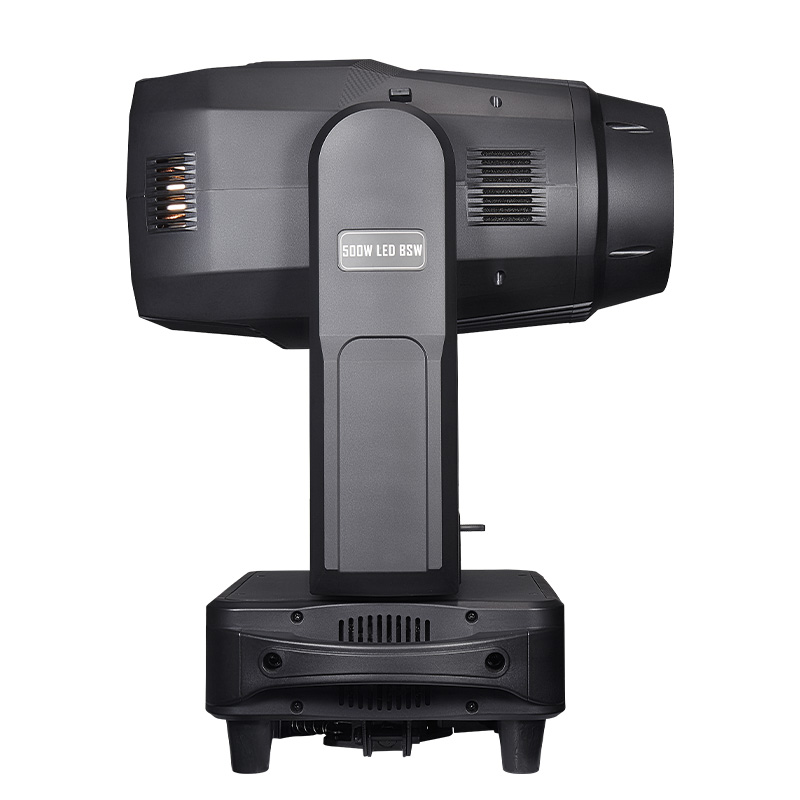

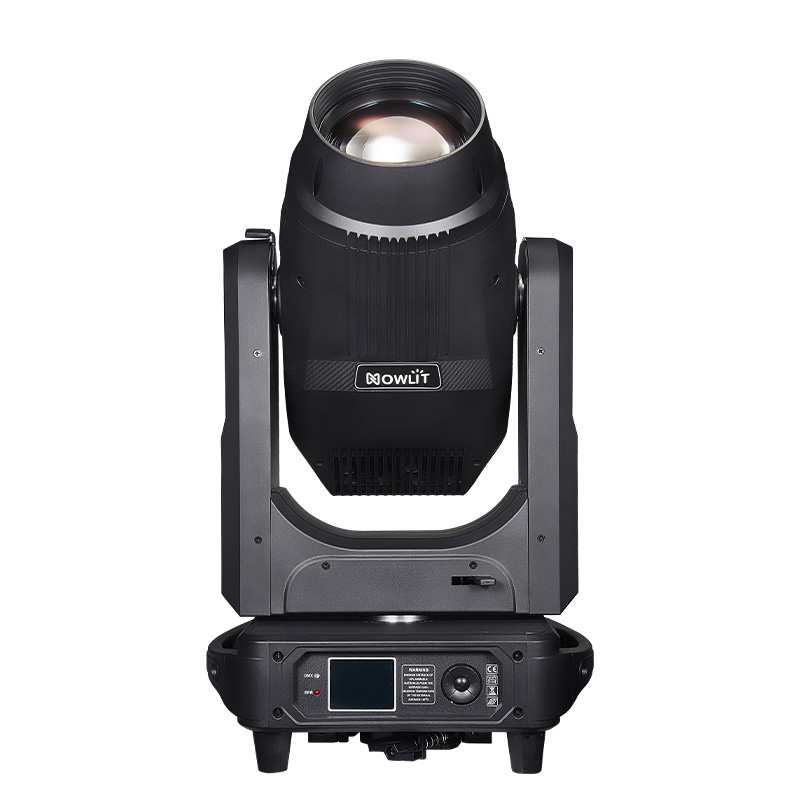

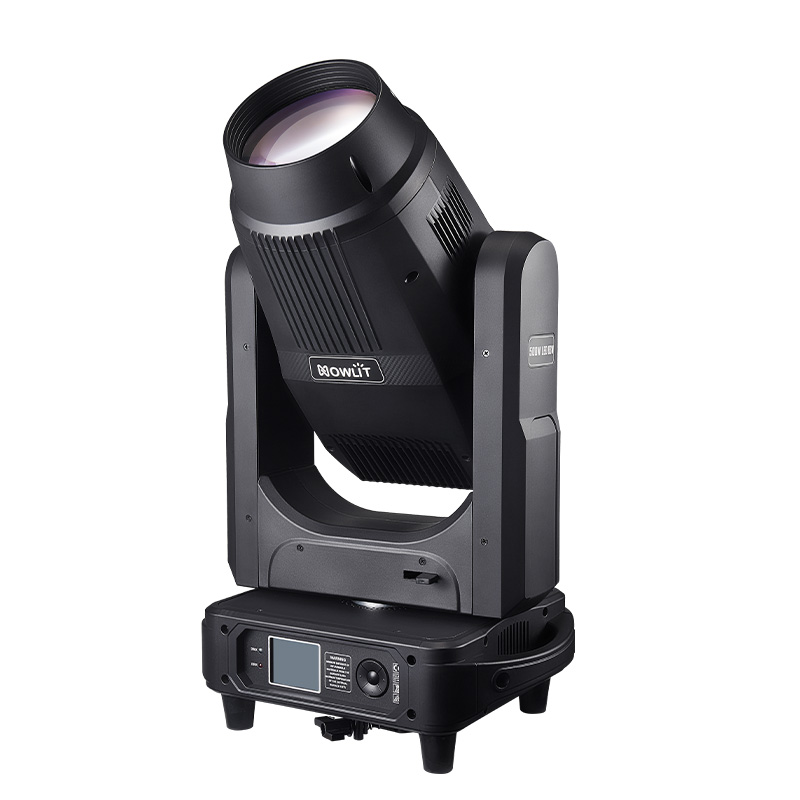

NOWLIT LED 500W BSW 3in1 CMY Moving head light

Light Source System

• Light source specification: 500W LED module
• Light source color temperature: 7747K
• Light source life: 20000 hours

Optical System

• Zoom range: electron linear zoom 3.5-50 degrees
• Lens diameter：138mm
• Total Luminous Fixture: 23,000 lm
• Lux：28600 Lux@10m

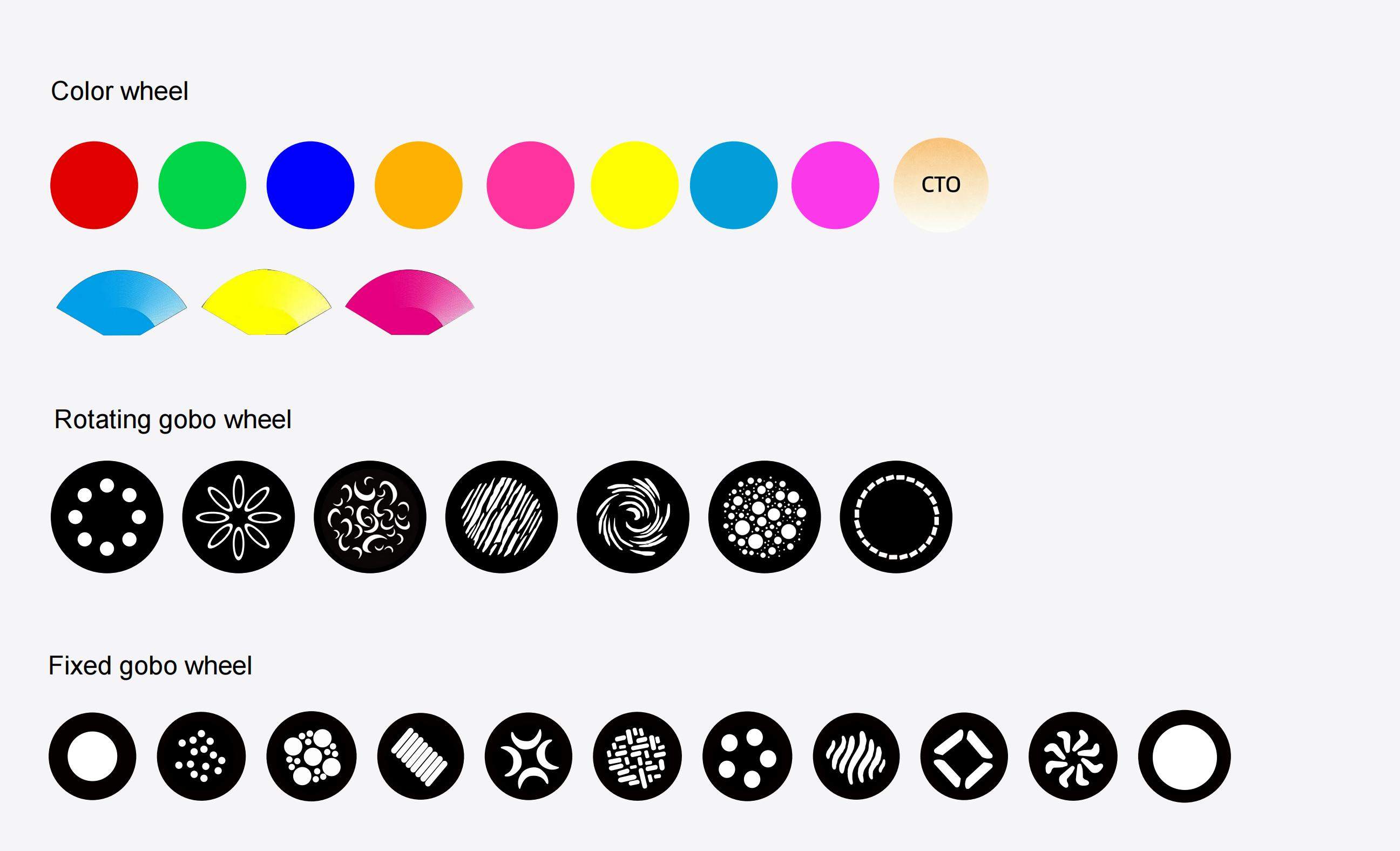

Color System

• Independent CMY color mixing system
• Linear CTO color temperature correction (7400-3200K)
• 1 Independent Color Wheel with 8 Colors, featuring step and linear color-changing modes

Gobo System

• Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
• Gobo sheet size: outer diameter 22.9mm±0.2mm, inner diameter 15mm, thickness 1.1mm
• Fixed gobo wheel: 11 fixed gobos+white, which can change speed and shake

Effect

• Prism: 8 facet prisms and 6 facet prisms, can rotate independently in both directions
• Dimming: 0-100% linear adjustment
• Strobe: multiple speed electronic strobe Effect
• Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan & Tilt

• Pan/Tilt Movement:540°/270°
• Automatically return to its original position and perform 16-bit precision fine-tuning
• Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

• Input voltage: AC100V-240V, 50/60Hz
• Rated power: 600W

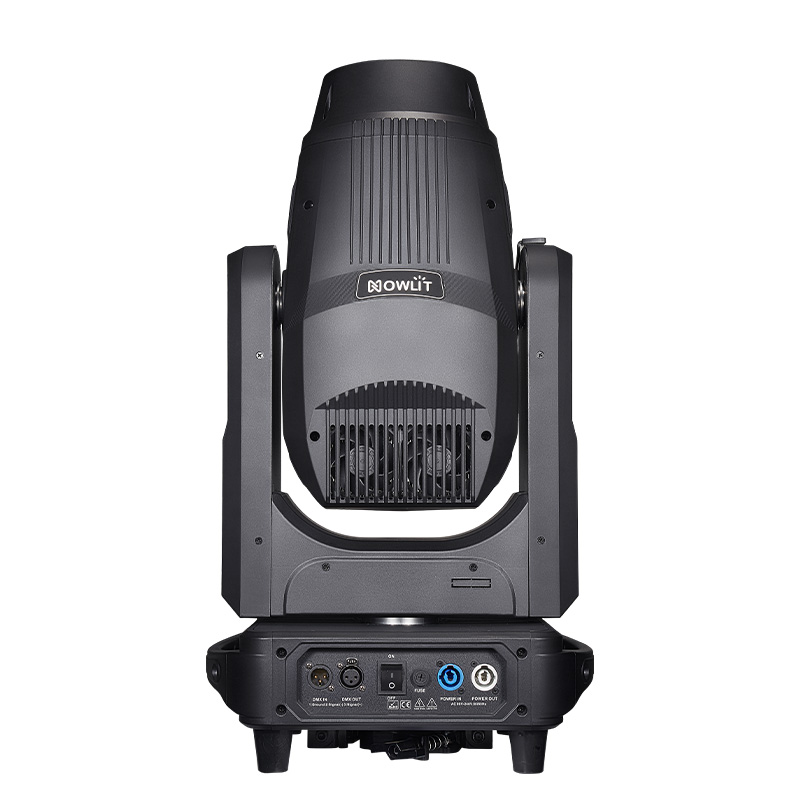

• Signal interface: 3-coreXLR signal input/output

Control & Programming

• Channel mode: 23/25CH
• Control protocol: standard DMX512/RDM protocol
• Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
• Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
• Software upgrade: software can be upgraded via DMX signal cable
• Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

• Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
• Working environment: -20 ° C to 40 ° C
• Protection level: IP20

Size & Weight

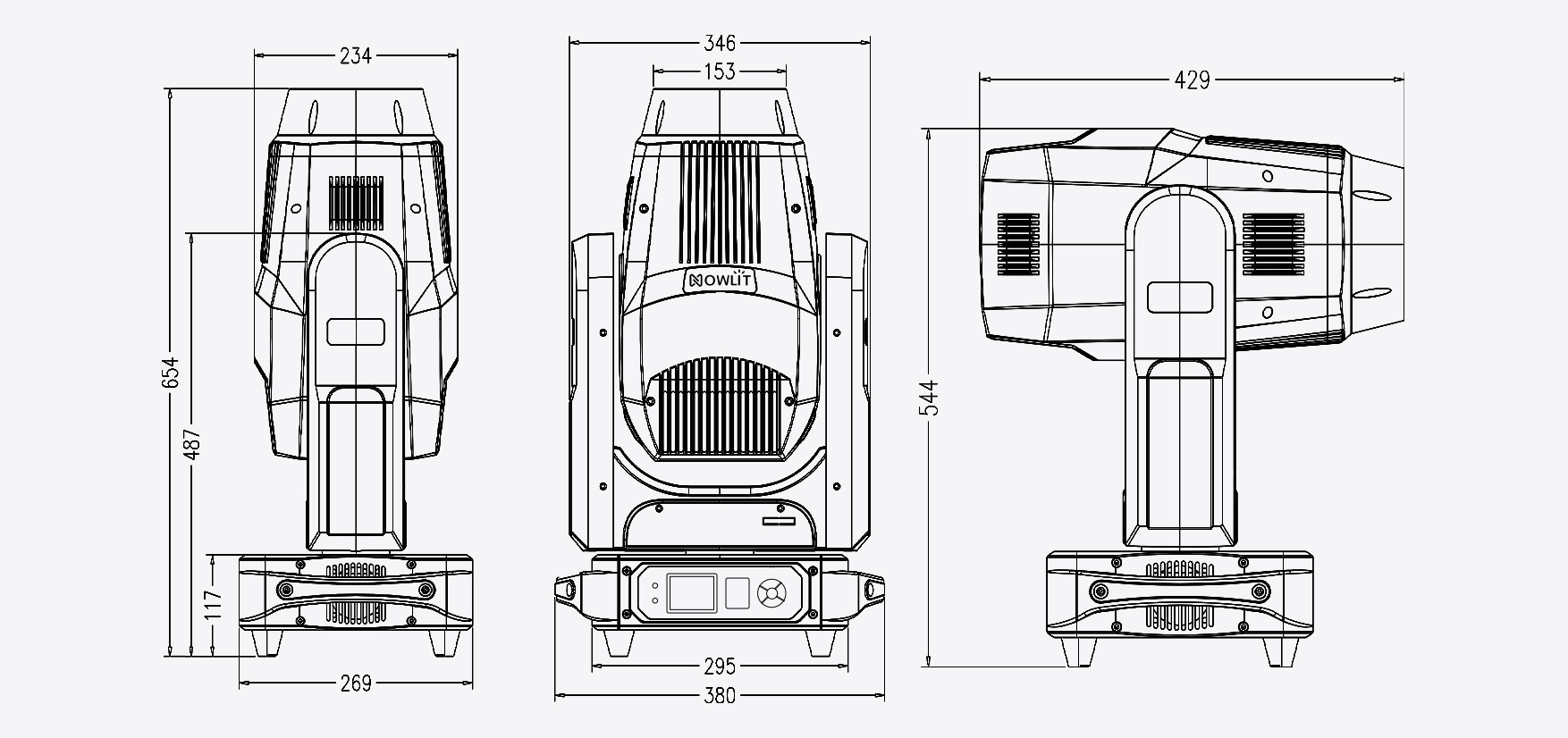

• Product size: 38*26.9*68.4cm (L*W*H)
• Net weight: 23.5kg

1. Is it easy to install and durable?

• This is our in-house model. The housing is sturdy, flame-retardant, and heat-resistant, with folding clamps for quick and secure installation, making it ideal for both touring and permanent installations.

2. How bright is it?

• Total output 23,000 lumens / 28,600 Lux at 10 m, with sharp, uniform beams and strong penetration, ideal for clubs, theaters, and large stage performances.

3. Are the gobo and prism effects sharp and clear?

• Yes, the rotating gobos are replaceable and support custom designs. Projected gobos are sharp and clear, and the dual prisms rotate independently, creating rich, layered stage visual effects. You are also welcome to see the effects live on-site for a more impressive experience.
